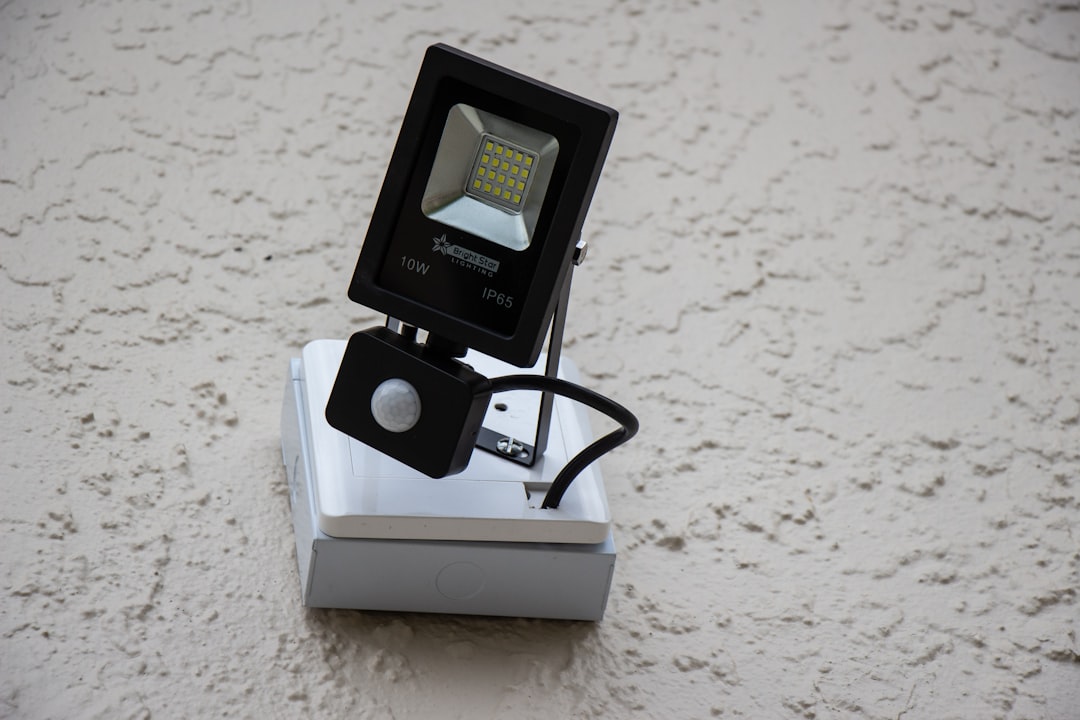

How to Position an External PIR Sensor for Driveway Security Lights

An external pir sensor is one of the simplest ways to make driveway security lights smarter, more reliable, and less annoying. When it’s positioned correctly, it detects people, cars, and movement where you actually need visibility, instead of triggering every time branches sway or a cat crosses the lawn. This how-to guide walks you through the best height, angle, distance, and placement for a PIR motion sensor so your driveway feels safer without flooding your outdoor living space with unnecessary light. Whether you’re upgrading outdoor lighting near the garage, adding security near a gate, or pairing motion detection with modern outdoor led lighting, a few careful positioning choices can make a big difference.

Why External PIR Sensor Placement Matters for Driveway Security

A PIR sensor detects changes in infrared heat, which means it responds best when a warm object moves across its detection zones. For driveway security lights, that usually means people, vehicles, pets, and sometimes wildlife.

If the sensor is mounted too high, pointed too far outward, or aimed directly at heat sources, it can miss important movement or create constant false alarms. Good placement gives you dependable outdoor lighting control while keeping your driveway, garage approach, and front garden comfortable after dark.

• Better safety: Lights turn on before you step out of the car or walk toward the house.
• Improved security: Sudden illumination can discourage unwanted visitors near gates, vehicles, and side entrances.
• Less nuisance lighting: Proper aiming reduces accidental triggers from roads, trees, pets, and neighbors.
• More polished curb appeal: Well-placed security lighting can blend with landscape lighting and outdoor décor instead of feeling harsh.

How to Position an external pir sensor for the Best Driveway Coverage

The best position usually lets the sensor “see” movement across the driveway rather than straight toward it. PIR sensors are typically more sensitive to side-to-side motion than movement coming directly at the lens.

Mount the sensor where someone walking up the drive or stepping out of a vehicle crosses the detection field. For most homes, that means placing it near the garage, on a side wall, above a gate area, or on a sturdy post facing diagonally across the driveway.

Quick positioning checklist

• Mounting height: Aim for about 6 to 8 feet high for most driveway applications.
• Detection direction: Angle the sensor so movement crosses the detection zones from left to right or right to left.
• Coverage area: Focus on the driveway, parked cars, garage door, and walking route to the entrance.
• Avoid trigger zones: Do not aim directly at public roads, sidewalks, reflective windows, vents, or waving shrubs.
• Light direction: Keep the light aimed downward and outward, not into windows or neighboring yards.

Choose the Right Mounting Height and Angle

Height is one of the biggest factors in reliable driveway detection. Too low, and the sensor may be vulnerable to tampering or triggered by small animals; too high, and it may look over the movement you want it to catch.

For most residential driveways, 6 to 8 feet offers a practical balance of range, accuracy, and easy adjustment. If you’re mounting on a garage wall, place the sensor slightly off-center so it scans across the approach rather than straight down the driveway.

Placement Factor	Best Practice	Why It Helps
Height	6 to 8 feet	Improves human and vehicle detection while reducing small-animal triggers
Horizontal angle	Diagonal across the driveway	Captures side-to-side movement more reliably
Vertical tilt	Slightly downward	Keeps detection focused on your property, not the street
Light beam	Downward and toward key zones	Reduces glare and keeps outdoor home lighting neighbor-friendly

After mounting, test the angle in the evening by walking through the exact areas you want covered. Start at the street, walk toward the garage, step beside parked cars, and approach your main pathway to check when the light activates.

Set the Detection Range Without Lighting the Whole Street

Most driveway PIR security lights include a range or sensitivity setting. Resist the temptation to set it to maximum right away, because a wider range often creates more false triggers.

Start with a medium setting, then adjust upward only if the sensor misses important areas. Your goal is to detect movement on your driveway, not every passing car, cyclist, or dog walker at the curb.

Areas your sensor should cover

• The point where a person first enters the driveway
• The driver’s side of parked vehicles
• The garage door or carport entrance
• The walkway from the driveway to the front or side door
• Any dark corners near bins, gates, fences, or storage areas

For longer driveways, one powerful light is not always the best answer. A layered setup with multiple lower-glare fixtures can work better, especially when combined with pathway lights, outdoor wall lighting, or subtle landscape lighting near planting beds.

Avoid False Triggers from Heat, Wind, and Reflective Surfaces

A well-placed external pir sensor should react to meaningful movement, not every environmental change. Since PIR technology reads heat shifts, certain objects and conditions can confuse it.

Keep the sensor away from dryer vents, HVAC units, boiler flues, outdoor kitchens, and direct views of sun-heated pavement. Also avoid aiming it at glossy garage doors, large windows, ponds, or shiny vehicles that can reflect heat and light.

• Trees and shrubs: Trim branches that sway directly in front of the sensor lens.
• Road traffic: Angle the sensor inward so headlights and passing cars don’t activate it.
• Pets and wildlife: Reduce sensitivity or tilt the sensor slightly higher if small animals trigger it often.
• Weather exposure: Install the unit where rain drains away and the lens won’t be constantly splashed.
• Competing lights: Avoid nearby fixtures that shine directly into the PIR lens.

If your driveway is part of a larger garden living area, balance security with ambiance. Motion lights can be practical without overpowering outdoor patio lighting, decorative planters, seating zones, or soft garden accents.

Fine-Tune Timer, Lux, and Sensitivity Settings

Once the sensor is physically positioned, use the settings to refine performance. Most units have controls for time duration, daylight sensitivity, and motion sensitivity.

The timer controls how long the light stays on after motion is detected. For driveways, 30 seconds to 2 minutes is often enough for parking, unloading groceries, or walking safely to the door.

• Time setting: Use a shorter duration for quick access areas and a longer one for large driveways.
• Lux setting: Adjust this so the light turns on only at dusk or after dark, not during daylight.
• Sensitivity setting: Start in the middle, then increase or decrease based on real-world testing.
• Test mode: Use it during setup so you can walk the driveway and see exactly where detection starts.

Smart outdoor lighting systems may also let you adjust schedules, detection zones, and brightness from an app. That can be useful if your driveway doubles as a patio access route or garden workspace during different seasons.

Common Mistakes to Avoid When Installing Driveway PIR Lights

The most common mistake is pointing the sensor straight down the driveway toward oncoming movement. It may seem logical, but PIR sensors usually perform better when the movement cuts across the sensor’s field of view.

Another mistake is using brightness to compensate for poor placement. Strong glare can make a space feel less welcoming and may irritate neighbors, while a correctly aimed fixture can provide better security with less harshness.

• Mounting the sensor above the manufacturer’s recommended height
• Aiming the detection zone at the street instead of your driveway
• Ignoring nearby heat sources such as vents and sun-warmed walls
• Setting sensitivity to maximum before testing
• Forgetting to clean the PIR lens after storms, pollen, or dust buildup
• Using one fixture when two smaller motion lights would provide smoother coverage

Test your setup over several nights, not just once. Wind, rain, parked vehicle positions, and seasonal foliage can all affect how the system behaves.

Final Thoughts: Make Your Driveway Safer Without Sacrificing Style

Positioning an external pir sensor well comes down to three essentials: mount it at the right height, angle it across the driveway, and adjust sensitivity so it responds to the movement that matters. When paired with thoughtfully chosen fixtures, your security lighting can protect your home while still complementing your garden, architecture, and everyday outdoor living.
